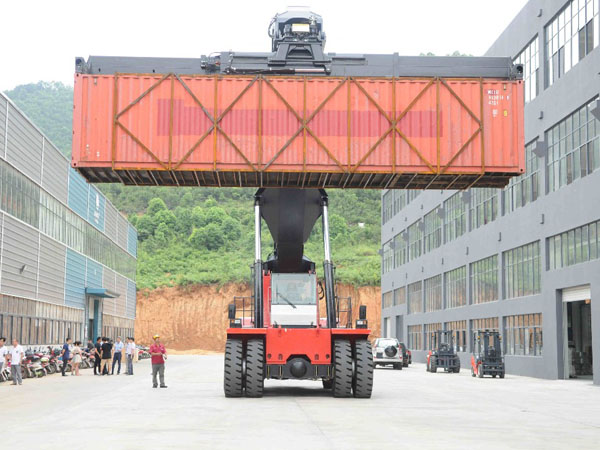

DALIAN ® 45Ton Container Reach Stacker CRS450CCZ5
DALIAN brand new Container Reach Stacker CRS450CCZ5 is a special container handling, stacking device, the maximum lifting capacity of 45 t, stacking capacity 5 layer, the product is flexible, efficient, widely used in port, yard, container transit and other places.
| CONTAINER REACH STACKER | CRS450CCZ5 |
|---|---|
| PERFORMANCE | |
| Rated lifting capacity |
40000 kg @ 5 Floor & 1900mm front distance 45000 kg @ 4 Floor & 1900mm front distance 31000 kg @ 4 Floor & 3850mm front distance 15000 kg @ 3 Floor & 6350mm front distance |
| Max. Lifting height | 15000 mm |
| Min. Turning radius | 8200 mm |
| Lifint speed (unload / load) | 430 / 231 mm/s |
| Service weight | 72000 kg |
| ENGINE | |
| Brand | USA CUMMINS |
| Model | QSM11T3 C335 |
| Rated Power | 250 kW @ 2100 rpm |
| TRANSMISSION | |
| Gearbox brand | DANA |
| Gear shift | F4R4 |
| Max. Travel speed | 25 km/h |
| Driving axles | KESSLER |
| Parking brake | Forcipated brake |
| Service brake | Oil-cooled muti-disc brake |
| Front tire | 18.00-25-40PR Pneumatic |
| Rear tire | 18.00-25-40PR Pneumatic |
| SPREADER | |
| Brand | ELME |
| Max. lifting capacity | 45000 kg |
| Rotation | 95 / -185 deg |
| Service weight | 8800 kg |
| Suitability | 20FT-40FT loaded container |
| Shift distance | 800 mm (L/R) |
