Wheel Loader AS938

   ANSION brand new 3500kg wheel loader AS938 is our hot-selling ZL35F type front end loader with 1.8 m3 bucket and 92kW 6-cylinder diesel engine. Our wheel loaders are widely applied to civil engineering works including site clearing, bulk earthworks, civil construction, roadworks, demolition and large scale electrical, plumbing and communications services, earthmoving and digging works in the Market of Brazil, Canada, Australia, Mexico, Indonesia, Saudi Arabia, Argentina, Pakistan, Chile, Bangladesh, Peru, Uzbekistan, Panama, Uruguay.

SPECIFICATION

WHEEL LOADER	AS938
Performance
Rated load	3500 kg
Bucket capacity	1.8 m3
Max. Dumping height	3100 mm
Dumping reach	1006 mm

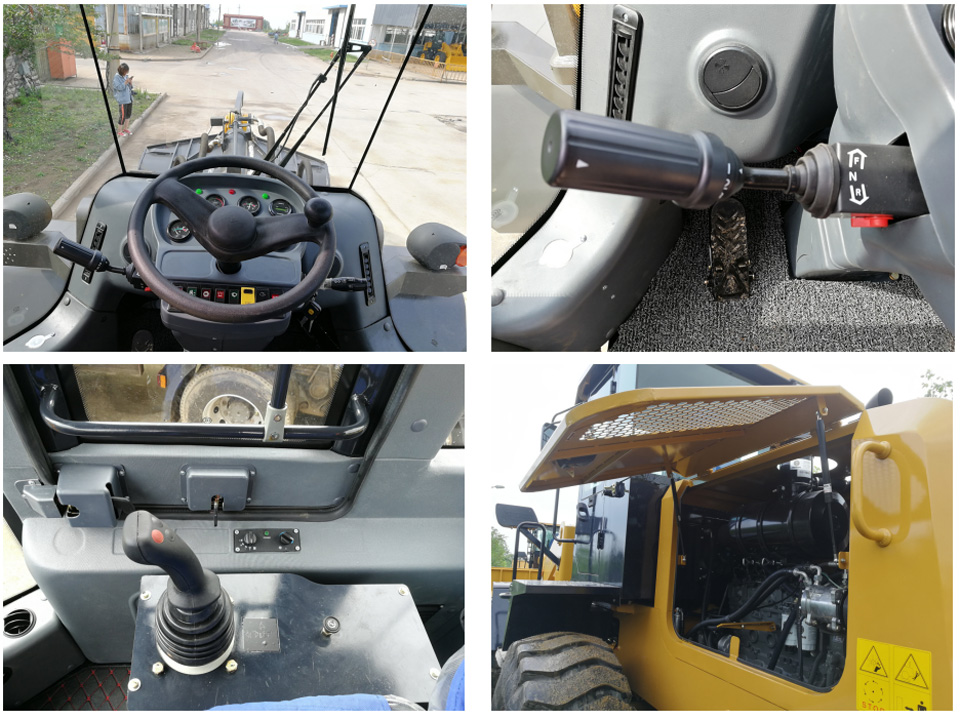

Operation type	Hydraulic pilot control (single joystick)
Max. Breakout force	127 kN
Max. Tractive force	97 kN
Dimension	7230 * 2520 * 3250 mm
Min. Turning Radius	5097 mm
Operating Weight	10500 kg
Engine
Brand	WEICHAI (DEUTZ) / CUMMINS
Model	WP6G125E22 / 6BTA5.9-C130
Rated Power	92 kW (125 HP) / 97 kW (130 HP)
Type	6-cylinders, 4-stroke, inline, water-cooling,   direct injection, diesel, Emission-II
Transmission
Gearbox	Countershaft Powershift / Electric Control
Gear shift	Forward 4 and reverse 2 / Forward 4 and reverse 3
Service brake	Air over oil disc brake
Tyres	17.5-25
Max. Travel speed	38 km/h
